Draw a floor plan to scale and print it

Measure your rooms, draw them to scale in metres, add doors, windows and dimensions, check each room's area, and print the plan at 1:50 on A3 or 1:100 on A4. Useful for renovations, furniture layouts, quotes from tradespeople and council paperwork.

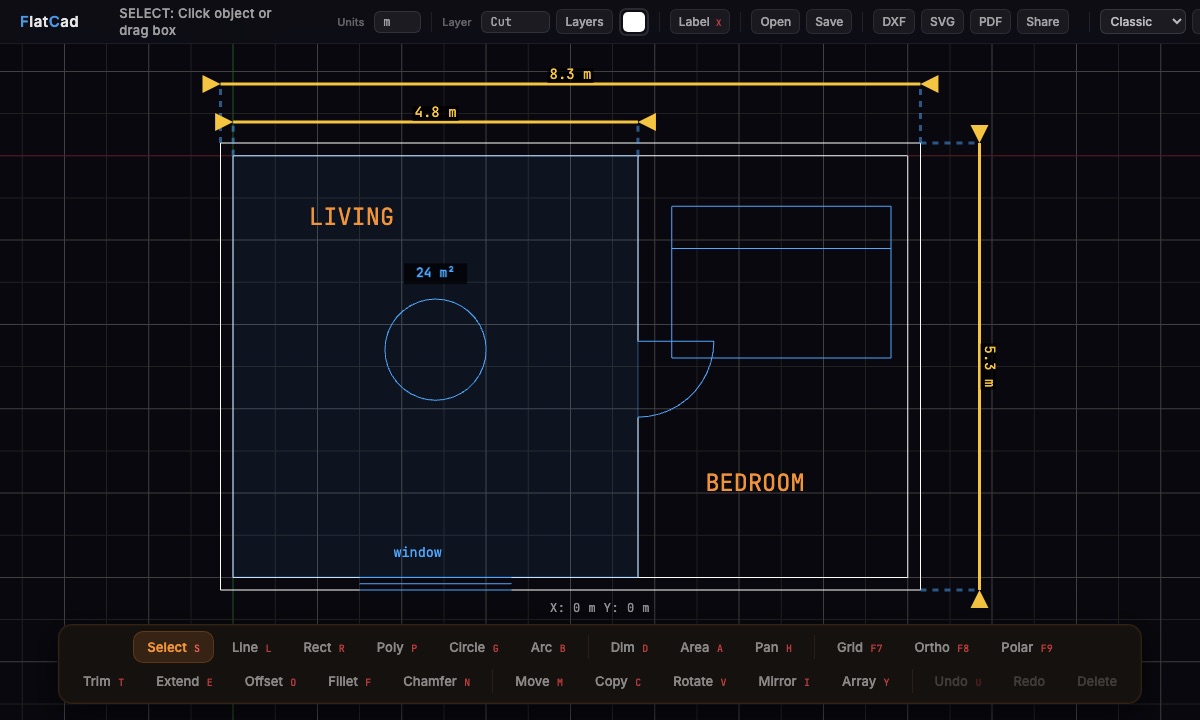

A two-room floor plan in FlatCad with double-line walls, a door swing, a window, room labels, dimensions and a 24 square metre area — The example plan every new visitor sees: double-line walls, a door swing, a window, dimensions and a room area of 24 m².

Step by step

Pick metres. Choose m from the Units menu (or ft for feet). Type sizes exactly as you measured them: 4.8 is 4.8 m.
Draw the inside of each room. Press R, click a corner, type the room's width and depth, for example 4.8,5, and press Enter. Rooms snap together at their corners.
Give the walls thickness. Press O for Offset, click a room outline, type the wall thickness such as 0.15, press Enter, and click outside the room.
Open doorways and add doors. Draw two short lines across the wall at the edges of the door, trim the wall lines between them with Trim (T), then delete the short lines. Draw the door leaf with a line and its swing with the Arc tool (B).
Dimension and label. Press D and click two points, then where the dimension line goes. Press A and click inside a room to show its area. Press X to add room names.
Print. Click PDF, choose the paper and a scale. FlatCad shows the printed size and how many pages it needs. Choose Save as PDF in the print dialog to get a file.

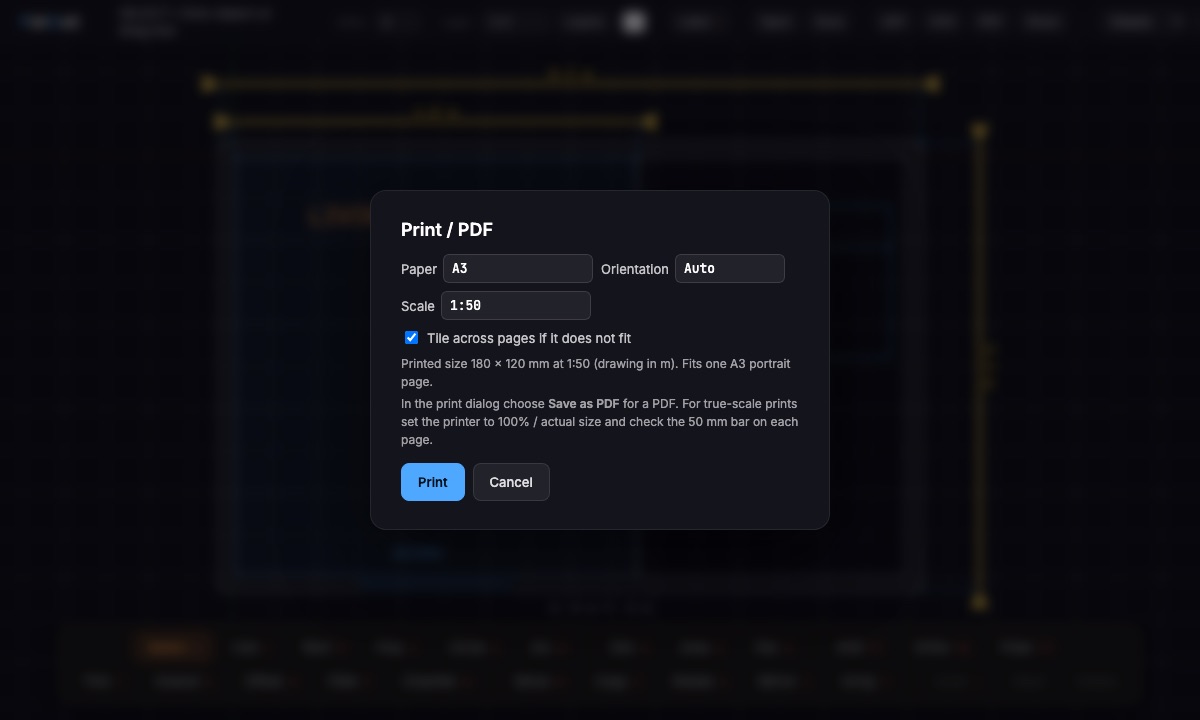

FlatCad's print dialog set to A3 at 1:50, reporting a printed size of 180 by 120 millimetres on one page — At 1:50 the example (about 9 × 6 m including its dimensions) prints 180 × 120 mm and fits one A3 sheet.

Scales that fit common paper

Scale	1 m on paper	Fits on one A4 sheet (281 × 185 mm printable)	Fits on one A3 sheet (404 × 272 mm)
1:50	20 mm	up to about 14 × 9 m	up to about 20 × 13.5 m
1:100	10 mm	up to about 28 × 18.5 m	up to about 40 × 27 m
1:200	5 mm	up to about 56 × 37 m	up to about 80 × 54 m

Bigger than that? Keep the scale and let FlatCad tile the plan across several sheets, labelled by row and column, ready to tape together.

Want to cut a model of the room on a laser, or send the plan to an architect? Export DXF; the plan keeps its units and layers.
